2-十一醇

产品名称 2-十一醇

CAS号1653-30-1

分子式C11H24O

分子量172.31

展开


  • Mass

    MS-NW-2011
    2-undecanol
    C11H24O             (Mass of molecular ion:    172)


       Source Temperature: 240 °C
       Sample Temperature: 170 °C
       Reservoir, 75 eV


          18.0       1.2
          27.0       4.4
          28.0       1.2
          29.0       7.0
          39.0       2.3
          41.0      12.3
          42.0       4.4
          43.0      16.3
          44.0       5.4
          45.0     100.0
          46.0       2.1
          54.0       1.1
          55.0      14.2
          56.0       9.5
          57.0      13.1
          58.0       2.1
          67.0       1.1
          68.0       1.0
          69.0      11.5
          70.0       9.3
          71.0       5.3
          82.0       2.0
          83.0      12.2
          84.0       6.3
          85.0       3.7
          96.0       1.0
          97.0       7.7
          98.0       3.2
         111.0       2.7
         112.0       2.1
         125.0       1.5
         126.0       4.2
         154.0       2.9
         157.0       2.0


400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C11 H24 O 0.05 ml : 0.5 ml CDCl3
    2-undecanol

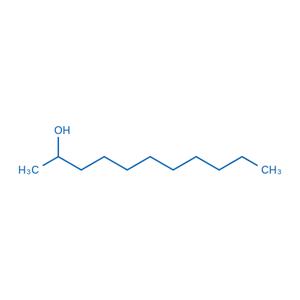

    ChemicalStructure
        Assign.     Shift(ppm)
    A 3.776 B 2.13 C 1.46 to 1.390 D 1.32 to 1.260 E 1.174 F 0.881

         Hz     ppm     Int.


       1517.58   3.798     44
       1512.45   3.785     60
       1511.47   3.782     70
       1506.23   3.769     66
       1505.49   3.768     74
       1499.27   3.752     49
        851.32   2.131    348
        590.33   1.478     44
        590.09   1.477     44
        589.48   1.475     43
        583.13   1.460     59
        576.17   1.442     64
        573.36   1.435     76
        567.38   1.420     91
        566.16   1.417     91
        564.33   1.413     91
        560.91   1.404     88
        558.72   1.399     83
        555.18   1.390     96
        552.98   1.384     96
        546.39   1.368     54
        542.24   1.357     61
        534.18   1.337    104
        507.08   1.269    731
        484.99   1.214     30
        480.83   1.204     31
        472.41   1.183   1000
        470.09   1.177     76
        466.19   1.167    945
        359.01   0.899    234
        352.17   0.882    690
        349.73   0.876     68
        345.21   0.864    244


in CDCl3



CCl4 solution

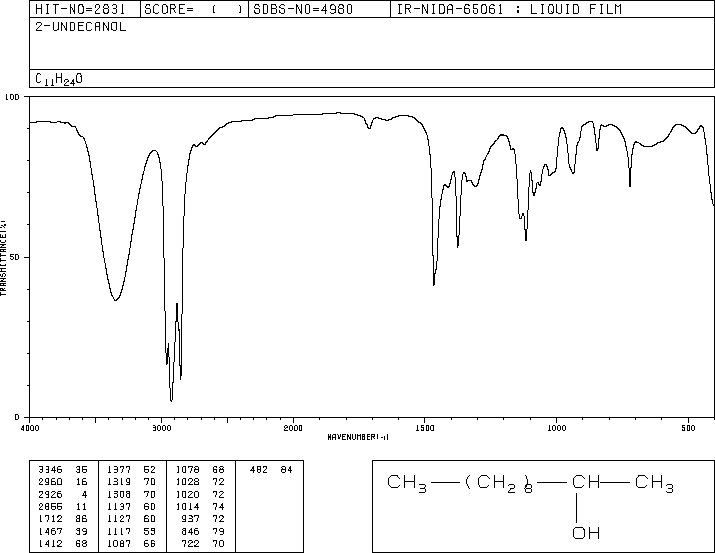

liquid film

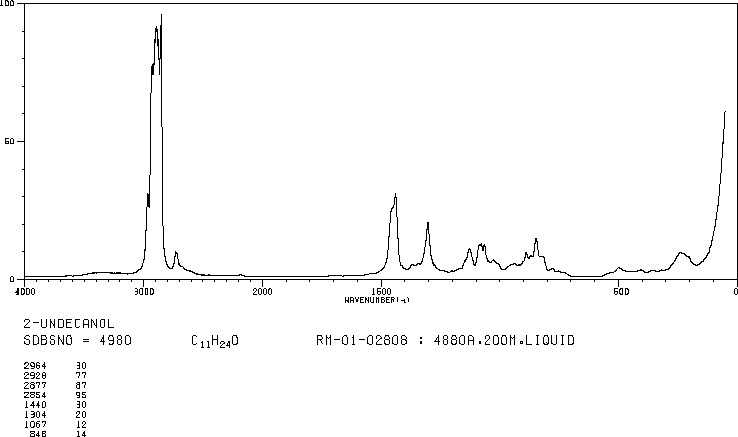

4880 A,200 M,liquid
