3,4-二氯苯胺

产品名称 3,4-二氯苯胺

CAS号95-76-1

分子式C6H5Cl2N

分子量162.02

展开


  • Mass

    MS-NW-1634
    3,4-dichloroaniline
    C6H5Cl2N            (Mass of molecular ion:    161)


       Source Temperature: 240 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          28.0       2.9
          37.0       2.4
          38.0       2.2
          39.0       2.6
          41.0       3.9
          44.5       4.0
          45.5       1.3
          49.0       1.1
          50.0       1.7
          52.0       3.1
          61.0       3.4
          62.0       5.5
          62.5       4.9
          63.0      11.9
          63.5       1.6
          64.0       3.0
          65.0       2.5
          72.0       1.7
          73.0       5.0
          74.0       1.7
          75.0       1.9
          80.5       4.8
          81.5       2.9
          88.0       1.0
          89.0       2.3
          90.0      16.2
          91.0       4.8
          97.0       1.6
          98.0       1.9
          99.0      16.5
         100.0       1.8
         101.0       5.8
         124.0       1.1
         125.0       6.5
         126.0      11.3
         127.0       2.9
         128.0       3.6
         133.0       3.4
         134.0       4.1
         135.0       2.6
         136.0       2.6
         160.0       1.3
         161.0     100.0
         162.0       7.8
         163.0      63.5
         164.0       4.6
         165.0      10.3


90 MHz in CDCl3


  • 1H NMR 89.56 MHz
    C6 H5 Cl2 N 0.041 g : 0.5 ml CDCl3
    3,4-dichloroaniline
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.148 B 6.735 C 6.482 D 3.70 J(A,C)=8.6HZ J(B,C)=2.7HZ

         Hz     ppm     Int.


        645.19   7.204    719
        636.63   7.109    949
        604.75   6.753    758
        602.13   6.724   1000
        585.63   6.539    597
        582.94   6.509    497
        577.06   6.444    453
        574.38   6.414    392
        330.94   3.696    240


in CDCl3



CCl4 solution

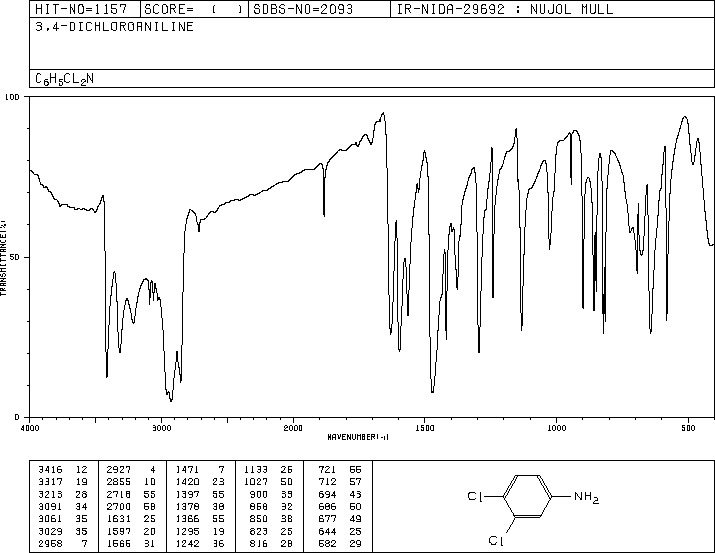

KBr disc



nujol mull
