网站主页CAS数据库列表 3063-94-3更多图谱甲基丙稀酸六氟异丙酯(3063-94-3)质谱(MS)

甲基丙稀酸六氟异丙酯

产品名称 甲基丙稀酸六氟异丙酯

CAS号3063-94-3

分子式C7H6F6O2

分子量236.11

展开

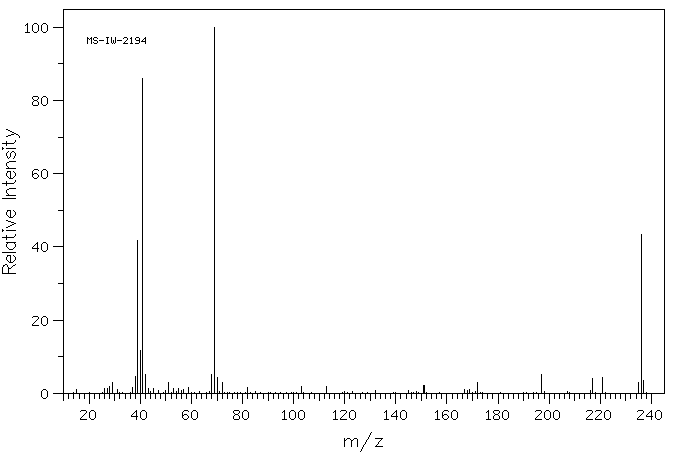

  • Mass

    MS-IW-2194
    2,2,2-trifluoro-1-(trifluoromethyl)ethyl methacrylate
    C7H6F6O2            (Mass of molecular ion:    236)


       Source Temperature: 230 °C
       Sample Temperature: 160 °C
       Reservoir, 75 eV


          15.0       1.1
          26.0       1.3
          27.0       1.3
          28.0       1.8
          29.0       2.9
          31.0       1.0
          37.0       1.7
          38.0       4.7
          39.0      41.8
          40.0      11.8
          41.0      85.9
          42.0       5.2
          43.0       1.2
          45.0       1.3
          51.0       3.1
          53.0       1.4
          55.0       1.4
          57.0       1.1
          59.0       1.5
          68.0       5.1
          69.0     100.0
          70.0       4.3
          72.0       2.9
          82.0       1.5
         103.0       1.8
         113.0       2.0
         151.0       2.1
         167.0       1.0
         169.0       1.0
         172.0       3.0
         197.0       5.1
         217.0       4.1
         221.0       4.4
         235.0       3.1
         236.0      43.3
         237.0       3.4


400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C7 H6 F6 O2 0.05 ml : 0.5 ml CDCl3
    2,2,2-trifluoro-1-(trifluoromethyl)ethyl methacrylate
    ChemicalStructure
        Assign.     Shift(ppm)
    A 6.337 B 5.849 C 5.83 D 2.019 J(B,F-19)=6.1HZ

         Hz     ppm     Int.


       2533.81   6.341    316
       2532.84   6.338    435
       2531.86   6.336    338
       2352.05   5.886     92
       2349.61   5.880     23
       2345.95   5.871    206
       2339.84   5.855    273
       2333.74   5.840    222
       2331.30   5.834    111
       2329.83   5.830    276
       2328.86   5.828    294
       2328.25   5.826    342
       2327.27   5.824    324
       2325.68   5.820    112
       2321.41   5.809     25
        808.23   2.023    835
        807.25   2.020    907
        806.64   2.019   1000
        805.66   2.016    827


in CDCl3



liquid film
