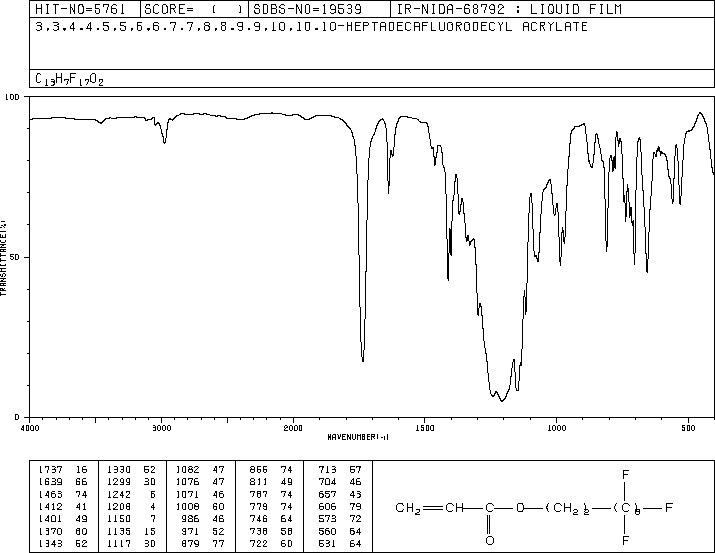

网站主页CAS数据库列表 27905-45-9更多图谱全氟辛基乙基丙烯酸酯(27905-45-9)红外图谱(IR1)

全氟辛基乙基丙烯酸酯

产品名称 全氟辛基乙基丙烯酸酯

CAS号27905-45-9

分子式C13H7F17O2

分子量518.17

展开


  • Mass

    MS-IW-7440
    3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-heptadecafluorodecyl acrylate
    C13H7F17O2          (Mass of molecular ion:    518)


       Source Temperature: 220 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          26.0       1.4
          27.0      13.1
          28.0       2.1
          29.0       1.9
          31.0       1.6
          43.0       1.0
          44.0       1.1
          51.0       3.1
          54.0       1.0
          55.0     100.0
          56.0       6.8
          65.0       3.1
          69.0      11.8
          72.0       8.1
          73.0       1.7
          77.0      10.0
          85.0       4.1
          95.0       7.4
          99.0      17.2
         100.0       2.2
         115.0       1.1
         119.0       4.0
         131.0       3.9
         169.0       1.8
         427.0       1.9
         518.0       9.4
         519.0       1.4


400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C13 H7 F17 O2 0.05 ml : 0.5 ml CDCl3
    3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-heptadecafluorodecyl acrylate
    ChemicalStructure
        Assign.     Shift(ppm)
    A 6.442 B 6.132 C 5.874 D 4.473 E 2.521

         Hz     ppm     Int.


       2585.45   6.470    382
       2583.98   6.466    380
       2568.12   6.426    503
       2566.65   6.423    509
       2464.23   6.166    425
       2453.74   6.140    530
       2446.90   6.123    325
       2436.40   6.097    400
       2353.03   5.888    497
       2351.68   5.885    473
       2342.53   5.862    407
       2341.19   5.859    407
       1794.31   4.490    472
       1787.72   4.474   1000
       1781.25   4.458    511
       1031.49   2.581     60
       1025.02   2.565    114
       1018.31   2.549     64
       1013.31   2.536    122
       1006.71   2.519    224
       1000.24   2.503    115
        995.00   2.490     72
        988.40   2.474    122
        981.93   2.457     60


liquid film
