130-95-0

Quinine

Product Name Quinine

CAS130-95-0

MFC20H24N2O2

MW324.42

More

  • 130-95-0_ms_1
    Mass

    MS-NW-5938
    quinine
    C20H24N2O2          (Mass of molecular ion:    324)


       Source Temperature: 200 °C
       Sample Temperature: 130 °C
       Direct, 75 eV


          27.0       1.4
          28.0       1.1
          29.0       1.5
          39.0       1.8
          41.0       5.1
          42.0       5.2
          44.0       1.4
          53.0       2.9
          54.0       1.4
          55.0       4.7
          56.0       2.0
          67.0       2.0
          68.0       1.2
          77.0       1.6
          79.0       3.3
          80.0       1.5
          81.0       8.0
          82.0       3.5
          89.0       1.1
          90.0       1.0
          91.0       1.0
          94.0       1.4
          95.0       2.7
         108.0       1.5
         116.0       1.5
         117.0       3.1
         130.0       1.2
         136.0     100.0
         137.0      10.6
         138.0       2.3
         145.0       1.5
         158.0       2.1
         159.0       1.6
         160.0       2.3
         172.0       2.5
         173.0       2.8
         174.0       1.9
         184.0       1.0
         186.0       1.4
         188.0       1.8
         189.0       5.1
         199.0       1.0
         324.0       1.5
         326.0       1.0


400 MHz in CDCl3

  • 130-95-0_1hnmr_0

    1H NMR 399.65 MHz
    C20 H24 N2 O2 0.029 g : 0.5 ml CDCl3
    quinine

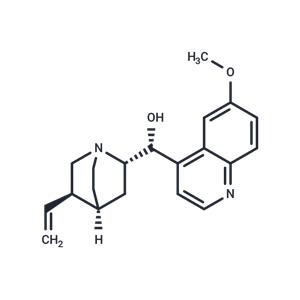

    ChemicalStructure
        Assign.     Shift(ppm)
    A 8.423 B 7.868 C 7.442 D 7.252 E 7.225 F 5.708 G 5.485 J 5.38 K 4.94 L 4.89 M 3.877 N 3.450 O 3.08 P 3.039 Q 2.61 R 2.59 S 2.234 T 1.78 to 1.69 U 1.50 to 1.43 assigned by H-H COSY. J(F,L)=10.3Hz J(F,K)=17.1Hz J(F,S)=7.7Hz J(P,Q)=-13.8Hz J(P,S)=10.1Hz

         Hz     ppm     Int.


       3368.65   8.430    174
       3364.14   8.418    182
       3149.41   7.881    168
       3140.38   7.858    182
       2976.68   7.449    149
       2972.17   7.437    146
       2904.66   7.269     97
       2901.98   7.262    124
       2895.51   7.246     71
       2892.94   7.239    141
       2888.67   7.229    185
       2886.11   7.222    124
       2299.68   5.755     35
       2291.99   5.735     39
       2289.43   5.729     43
       2282.10   5.711     64
       2274.90   5.693     46
       2272.34   5.686     47
       2264.65   5.667     43
       2193.48   5.489     86
       2190.80   5.482     89
       2149.66   5.379     71
       1981.81   4.959    103
       1964.60   4.916     99
       1963.26   4.913     86
       1961.91   4.910     97
       1960.82   4.907    109
       1950.44   4.881     95
       1549.56   3.878   1000
       1383.06   3.461     35
       1382.69   3.460     35
       1380.49   3.455     38
       1378.30   3.449     37
       1378.05   3.449     37
       1225.59   3.067     85
       1215.45   3.042     68
       1211.79   3.033     69
       1201.66   3.007     60
       1055.30   2.641     53
       1051.03   2.630     66
       1048.58   2.624     56
       1041.50   2.607     74
       1039.43   2.601     72
       1039.06   2.600     72
       1037.72   2.597     71
        893.07   2.235     42
        892.82   2.235     42
        892.46   2.234     42
        892.09   2.233     42
        713.75   1.786     71
        711.55   1.781     79
        708.50   1.773     66
        705.81   1.767     58
        697.02   1.745     59
        691.89   1.732     71
        684.69   1.714     80
        674.80   1.689     31
        674.44   1.688     31
        600.95   1.504     38
        600.46   1.503     38
        598.02   1.497     43
        588.38   1.473     76
        583.01   1.459     50
        581.18   1.455     53
        580.81   1.454     53
        578.86   1.449     47
        578.37   1.448     47


in CDCl3

  • 130-95-0_13cnmr_0

KBr disc

  • 130-95-0_ir1_2

nujol mull

  • 130-95-0_ir2_1

4880 A,200 M,powder

  • 130-95-0_raman_0
