111-77-3

Diethylene glycol monomethyl ether

Product Name Diethylene glycol monomethyl ether

CAS111-77-3

MFC5H12O3

MW120.15

More

  • 111-77-3_ms
    Mass

    MS-NW-5525
    3,6-dioxa-1-heptanol
    C5H12O3             (Mass of molecular ion:    120)


       Source Temperature: 260 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          15.0      10.1
          19.0       3.2
          26.0       1.3
          27.0       7.1
          28.0       5.3
          29.0      12.5
          31.0      20.5
          33.0       1.7
          42.0       1.3
          43.0      10.4
          44.0       4.7
          45.0     100.0
          46.0       2.5
          58.0      22.3
          59.0      46.1
          60.0       5.8
          75.0      11.2
          87.0       1.8
          89.0      12.4
          90.0      14.5


90 MHz in CDCl3

  • 111-77-3_1hnmr

    1H NMR 89.56 MHz
    C5 H12 O3 0.04 ml : 0.5 ml CDCl3
    3,6-dioxa-1-heptanol

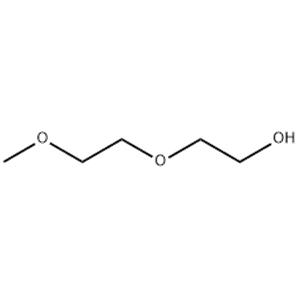

    ChemicalStructure
        Assign.     Shift(ppm)
    A 3.82 to 3.47 B 3.394 C 3.13

         Hz     ppm     Int.


        338.44   3.779     31
        337.06   3.764     34
        335.25   3.744     44
        334.38   3.734     65
        333.25   3.721     61
        331.75   3.705     74
        331.00   3.696    122
        330.25   3.688    150
        327.75   3.660     62
        326.44   3.645    190
        325.69   3.637    138
        325.13   3.631    176
        324.50   3.624    159
        323.50   3.613     88
        322.50   3.601    183
        322.00   3.596    148
        320.69   3.581     88
        319.38   3.567     63
        318.31   3.555     42
        317.44   3.545     41
        315.13   3.519     36
        303.94   3.394   1000
        280.56   3.133    303


in CDCl3

  • 111-77-3_13cnmr

CCl4 solution

  • 111-77-3_ir1_2

liquid film

  • 111-77-3_ir2

4880 A,150M,liquid

  • 111-77-3_raman
