2-甲基苄胺

产品名称 2-甲基苄胺

CAS号89-93-0

分子式C8H11N

分子量121.18

展开


  • Mass

    MS-NW-6161
    o-methylbenzylamine
    C8H11N              (Mass of molecular ion:    121)


       Source Temperature: 260 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          18.0       1.2
          27.0       2.4
          28.0      10.1
          29.0       1.8
          30.0      17.9
          38.0       1.3
          39.0       6.4
          41.0       1.5
          50.0       2.1
          51.0       4.8
          52.0       1.7
          53.0       1.6
          58.5       1.1
          59.5       2.9
          62.0       1.3
          63.0       3.4
          65.0       5.7
          77.0      12.0
          78.0       9.0
          79.0       8.4
          80.0       1.0
          89.0       2.4
          90.0       1.6
          91.0      14.0
          92.0       3.5
          93.0      12.0
          94.0       1.1
         102.0       1.0
         103.0       8.8
         104.0     100.0
         105.0      16.0
         106.0      12.8
         107.0       1.0
         116.0       1.1
         117.0       2.7
         118.0       2.8
         119.0       1.2
         120.0      14.8
         121.0       6.5


90 MHz in CDCl3

400 MHz in CDCl3


  • 1H NMR 89.56 MHz
    C8 H11 N 0.04 ml : 0.5 ml CDCl3
    o-methylbenzylamine

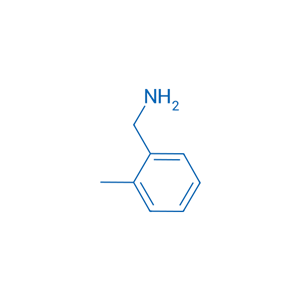

    ChemicalStructure
        Assign.     Shift(ppm)
    A *1 7.27 B *2 7.19 C *2 7.15 D *1 7.15 E 3.833 F 2.321 G 1.56

         Hz     ppm     Int.


        656.25   7.328     23
        655.25   7.317     37
        654.88   7.313     38
        652.75   7.289     47
        652.13   7.282     42
        650.81   7.267     63
        647.75   7.233    171
        647.00   7.225     81
        645.63   7.209     30
        643.25   7.183    223
        641.44   7.163    441
        638.50   7.130    417
        636.44   7.107     42
        343.38   3.835    374
        207.94   2.322   1000
        139.94   1.563    188



  • 1H NMR 399.65 MHz
    C8 H11 N 0.05 ml : 0.5 ml CDCl3
    o-methylbenzylamine
    ChemicalStructure
        Assign.     Shift(ppm)
    A *1 7.24 B *2 7.16 C *1 7.12 D *1 7.11 E 3.773 F 2.278 G 1.81 A,B,C AND D WERE CONFIRMED BY LAOCN PROGRAM. 90MHZ : HSP-03-686

         Hz     ppm     Int.


       2898.56   7.253    104
       2896.85   7.249    120
       2890.14   7.232    166
       2868.41   7.178     64
       2865.36   7.170     97
       2861.21   7.160    108
       2859.99   7.157    160
       2857.42   7.150    136
       2855.47   7.145    140
       2853.64   7.141    122
       2852.17   7.137    135
       2848.14   7.127    260
       2846.56   7.123    294
       2844.73   7.119    255
       2842.16   7.112    306
       2840.82   7.109    252
       2837.52   7.101     57
       1507.81   3.773    484
        910.52   2.279   1000
        722.17   1.808    140


in CDCl3



liquid film
