2-(三氟甲基)苄基二氯

产品名称 2-(三氟甲基)苄基二氯

CAS号707-72-2

分子式C8H5Cl2F3

分子量229.03

展开

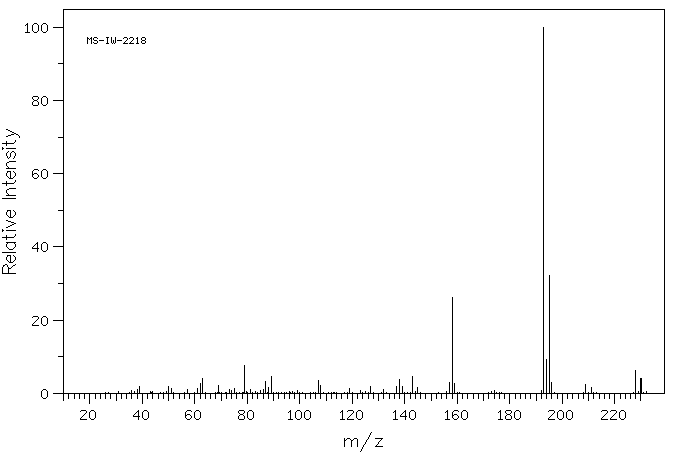

  • Mass

    MS-IW-2218
    alpha',alpha'-dichloro-alpha,alpha,alpha-trifluoro-o-xylene
    C8H5Cl2F3           (Mass of molecular ion:    228)


       Source Temperature: 220 °C
       Sample Temperature: 160 °C
       Reservoir, 75 eV


          38.0       1.0
          39.0       2.0
          50.0       1.8
          51.0       1.3
          57.0       1.0
          61.0       1.3
          62.0       2.8
          63.0       4.0
          69.0       2.1
          73.0       1.0
          75.0       1.4
          79.0       7.7
          81.0       1.0
          86.0       1.1
          87.0       3.2
          88.0       1.5
          89.0       4.6
         107.0       3.6
         108.0       2.2
         119.0       1.2
         127.0       1.8
         132.0       1.0
         137.0       2.0
         138.0       3.7
         139.0       1.9
         143.0       4.5
         145.0       1.7
         157.0       3.0
         158.0      26.3
         159.0       2.8
         193.0     100.0
         194.0       9.2
         195.0      32.2
         196.0       2.9
         209.0       2.4
         211.0       1.6
         228.0       6.2
         230.0       4.0


400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C8 H5 Cl2 F3 0.05 ml : 0.5 ml CDCl3
    alpha',alpha'-dichloro-alpha,alpha,alpha-trifluoro-o-xylene
    ChemicalStructure
        Assign.     Shift(ppm)
    A 8.136 B 7.654 C 7.590 D 7.448 E 7.091 CONFIRMED BY LAOCN PROGRAM.

         Hz     ppm     Int.


       3255.86   8.147    296
       3247.80   8.127    312
       3067.02   7.675    158
       3066.41   7.673    155
       3058.96   7.655    298
       3051.51   7.636    168
       3050.90   7.634    167
       3047.36   7.626     21
       3047.00   7.625     21
       3046.26   7.623     21
       3045.29   7.620     20
       3037.84   7.602    268
       3037.23   7.600    256
       3029.91   7.582    339
       2983.40   7.466    202
       2975.83   7.447    285
       2968.02   7.427    130
       2833.86   7.091   1000


in CDCl3



liquid film
