N-甲基吲哚

产品名称 N-甲基吲哚

CAS号603-76-9

分子式C9H9N

分子量131.17

展开


  • Mass

    MS-NW-3569
    1-methylindole
    C9H9N               (Mass of molecular ion:    131)


       Source Temperature: 280 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          27.0       1.6
          38.0       1.3
          39.0       3.3
          50.0       2.8
          51.0       5.9
          52.0       2.7
          62.0       1.9
          63.0       4.5
          64.0       2.0
          64.5       4.2
          65.0       6.0
          65.5       4.0
          74.0       1.3
          75.0       1.7
          76.0       2.0
          77.0      12.0
          78.0       1.9
          89.0       3.7
          90.0       2.9
         101.0       1.2
         102.0       3.8
         103.0       9.7
         104.0       2.5
         128.0       2.7
         129.0       2.0
         130.0     100.0
         131.0      89.3
         132.0       8.7


400 MHz in CDCl3

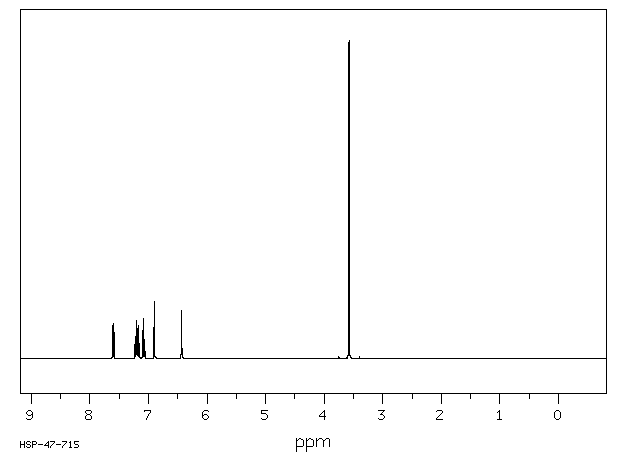

  • 1H NMR 399.65 MHz
    C9 H9 N 0.05 ml : 0.5 ml CDCl3
    1-methylindole
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.600 B 7.215 C 7.178 D 7.082 E 6.900 F 6.434 G 3.576

         Hz     ppm     Int.


       3042.72   7.614     74
       3041.75   7.612    104
       3040.65   7.609     78
       3034.79   7.594     83
       3033.94   7.592    111
       3032.84   7.589     87
       2890.14   7.232     43
       2889.53   7.231     44
       2888.92   7.229     48
       2882.69   7.214     69
       2881.96   7.212    120
       2881.23   7.210    115
       2880.62   7.208    120
       2879.88   7.207     69
       2875.73   7.196     78
       2874.51   7.193     80
       2869.02   7.179     94
       2868.77   7.179     94
       2867.55   7.176    105
       2866.33   7.173     32
       2860.84   7.159     46
       2859.62   7.156     45
       2837.52   7.101     88
       2836.18   7.097     87
       2830.81   7.084     70
       2829.59   7.081    127
       2828.37   7.078     88
       2823.00   7.064     60
       2821.66   7.061     59
       2759.28   6.905    170
       2756.23   6.897    179
       2573.49   6.440    145
       2572.63   6.438    149
       2570.31   6.432    145
       2569.58   6.430    146
       1429.08   3.576   1000


in CDCl3
