二巯丙醇

产品名称 二巯丙醇

CAS号59-52-9

分子式C3H8OS2

分子量124.22

展开

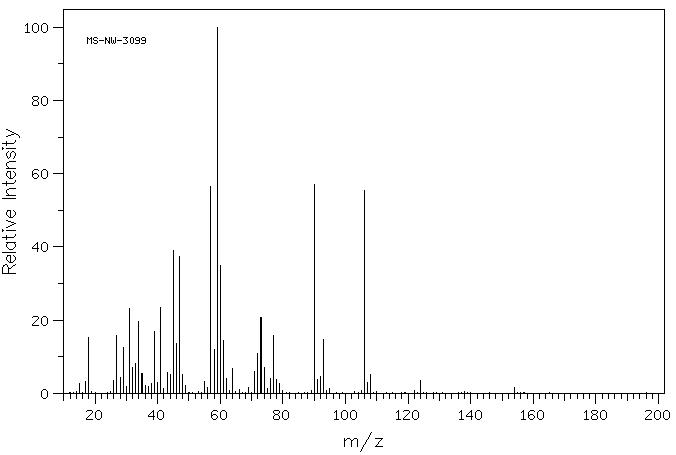

  • Mass

    MS-NW-3099
    2,3-dimercapto-1-propanol
    C3H8OS2             (Mass of molecular ion:    124)


       Source Temperature: 290 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          15.0       2.6
          17.0       3.3
          18.0      15.3
          26.0       3.6
          27.0      15.8
          28.0       4.3
          29.0      12.5
          30.0       1.8
          31.0      23.2
          32.0       7.1
          33.0       8.2
          34.0      19.6
          35.0       5.3
          36.0       2.2
          37.0       1.8
          38.0       2.8
          39.0      16.9
          40.0       3.0
          41.0      23.4
          42.0       1.3
          43.0       5.6
          44.0       5.2
          45.0      39.1
          46.0      13.7
          47.0      37.5
          48.0       5.2
          49.0       2.1
          55.0       3.2
          56.0       1.6
          57.0      56.4
          58.0      12.0
          59.0     100.0
          60.0      35.0
          61.0      14.4
          62.0       4.1
          64.0       6.8
          66.0       1.0
          69.0       1.6
          71.0       6.0
          72.0      10.8
          73.0      20.6
          74.0       7.2
          75.0       1.3
          76.0       4.1
          77.0      15.8
          78.0       3.7
          79.0       2.6
          90.0      57.0
          91.0       3.8
          92.0       4.6
          93.0      14.8
          95.0       1.4
         106.0      55.3
         107.0       3.0
         108.0       5.2
         124.0       3.4
         154.0       1.5


400 MHz in CDCl3

90 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C3 H8 O S2 0.05 ml : 0.5 ml CDCl3
    2,3-dimercapto-1-propanol
    ChemicalStructure
        Assign.     Shift(ppm)
    A *1 3.76 B *1 3.76 C 3.26 D 3.048 E *2 2.87 F *2 2.83 G 1.798 J 1.749 J(A,B)=12.4HZ. J(A,D)=5.9HZ. J(B,D)=5.7HZ. J(D,G)=8.8HZ. J(E,J)=J(F,J)=8.6HZ.

         Hz     ppm     Int.


       1516.85   3.796     30
       1515.63   3.793     73
       1514.40   3.790     42
       1512.21   3.784     45
       1510.86   3.781     48
       1509.77   3.778     98
       1504.27   3.764    866
       1503.05   3.761    831
       1498.54   3.750    847
       1497.19   3.747    831
       1491.70   3.733     75
       1485.96   3.719     68
       1303.10   3.261    302
       1234.99   3.091     54
       1229.13   3.076    171
       1226.20   3.069     69
       1222.90   3.060    246
       1220.34   3.054    184
       1217.04   3.046    208
       1214.11   3.038    246
       1211.18   3.031     80
       1208.13   3.023    204
       1202.39   3.009     71
       1160.89   2.905     31
       1155.03   2.891     36
       1152.47   2.884     51
       1151.61   2.882     39
       1146.97   2.870    748
       1141.36   2.856    481
       1140.38   2.854    503
       1138.55   2.849    603
       1138.06   2.848    599
       1132.81   2.835    471
       1131.59   2.832    477
       1128.17   2.823     38
       1126.46   2.819     39
       1124.15   2.813     39
       1117.80   2.797     30
        723.02   1.810   1000
        718.87   1.799     32
        714.23   1.788    954
        710.82   1.779     37
        710.45   1.778     37
        709.96   1.777     35
        707.40   1.771    490
        703.74   1.761     34
        702.88   1.759     34
        701.66   1.756     40
        698.73   1.749    803
        695.19   1.740     35
        694.21   1.738     31
        693.24   1.735     30
        690.19   1.727    449



  • 1H NMR 89.56 MHz
    C3 H8 O S2 0.05 ml : 0.5 ml CDCl3
    2,3-dimercapto-1-propanol
    ChemicalStructure
        Assign.     Shift(ppm)
    A 3.755 B 3.01 C 2.91 D 2.86 E 1.76 F 1.71 J(A,B)=5.6HZ. J(B,E)=8.6HZ.

         Hz     ppm     Int.


        339.50   3.791    763
        335.88   3.751     61
        333.88   3.729   1000
        284.38   3.176     49
        283.06   3.161     43
        279.00   3.116     34
        278.56   3.111     37
        277.63   3.100     89
        275.88   3.081     53
        274.19   3.062     61
        272.38   3.042     86
        269.31   3.008     78
        268.69   3.001     76
        266.88   2.980     64
        264.06   2.949     95
        261.88   2.925    504
        260.56   2.910    936
        257.19   2.872    158
        255.13   2.849    111
        253.81   2.834    429
        253.38   2.830    434
        249.56   2.787     33
        248.13   2.771    202
        247.19   2.761    187
        161.81   1.807    631
        153.19   1.711    533
        145.00   1.620    156


in CDCl3



liquid film
