网站主页CAS数据库列表 446-11-7更多图谱4-氟-3-硝基甲苯(446-11-7)核磁图(1HNMR)

4-氟-3-硝基甲苯

产品名称 4-氟-3-硝基甲苯

CAS号446-11-7

分子式C7H6FNO2

分子量155.13

展开

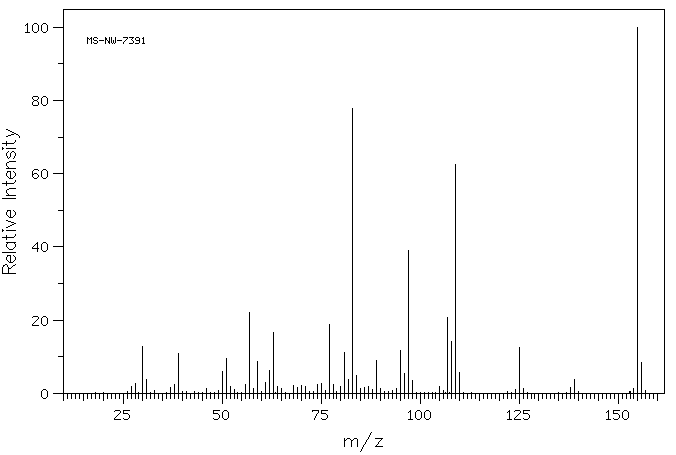

  • Mass

    MS-NW-7391
    4-fluoro-3-nitrotoluene
    C7H6FNO2            (Mass of molecular ion:    155)


       Source Temperature: 210 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          27.0       1.9
          28.0       2.8
          30.0      12.9
          31.0       3.9
          37.0       1.5
          38.0       2.4
          39.0      11.0
          46.0       1.3
          50.0       6.1
          51.0       9.6
          52.0       1.9
          53.0       1.1
          56.0       2.5
          57.0      22.0
          58.0       1.2
          59.0       8.8
          61.0       3.0
          62.0       6.2
          63.0      16.5
          64.0       1.9
          65.0       1.2
          68.0       2.1
          69.0       1.6
          70.0       2.2
          71.0       1.8
          74.0       2.5
          75.0       2.7
          77.0      18.9
          78.0       2.3
          80.0       1.8
          81.0      11.1
          82.0       3.8
          83.0      77.7
          84.0       4.8
          85.0       1.4
          86.0       1.7
          87.0       1.8
          88.0       1.0
          89.0       9.1
          90.0       1.3
          94.0       1.4
          95.0      11.8
          96.0       5.3
          97.0      38.9
          98.0       3.4
         105.0       2.0
         107.0      20.8
         108.0      14.1
         109.0      62.6
         110.0       5.6
         124.0       1.0
         125.0      12.6
         126.0       1.2
         138.0       1.5
         139.0       3.7
         154.0       1.4
         155.0     100.0
         156.0       8.4


90 MHz in CDCl3


  • 1H NMR 89.56 MHz
    C7 H6 F N O2 saturated in CDCl3
    4-fluoro-3-nitrotoluene
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.86 B 7.42 C 7.18 D 2.418

         Hz     ppm     Int.


        707.88   7.904    119
        706.19   7.886    119
        701.13   7.829    115
        699.06   7.806    112
        669.25   7.473     72
        668.56   7.465     73
        666.81   7.446     74
        666.31   7.440     85
        665.13   7.427    115
        664.50   7.420    115
        663.81   7.412     86
        662.88   7.402    113
        662.25   7.395    112
        661.44   7.386     82
        660.75   7.378    106
        660.00   7.370     99
        659.44   7.364     74
        659.00   7.359     70
        658.38   7.352     90
        657.81   7.345     87
        651.00   7.269    618
        642.56   7.175    120
        640.50   7.152    203
        631.94   7.057    100
        216.94   2.423   1000
        216.44   2.417    996


in CDCl3

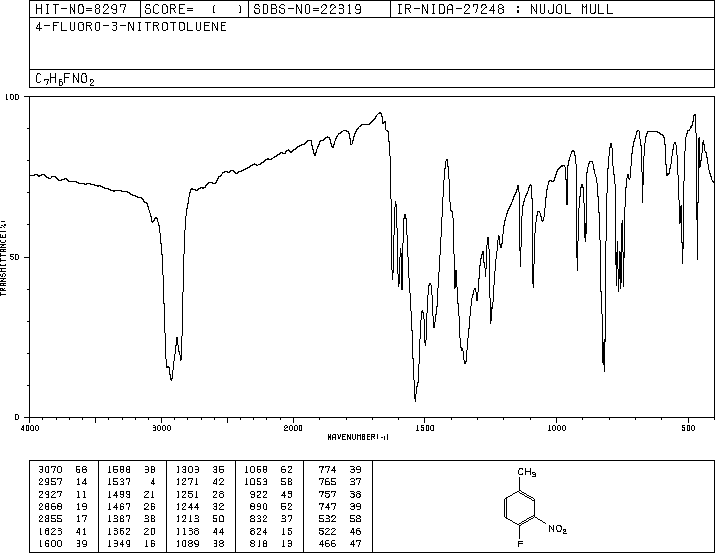

KBr disc



nujol mull
