网站主页CAS数据库列表 3156-41-0更多图谱~,4-二硝基苯乙烯(3156-41-0)红外图谱(IR2)

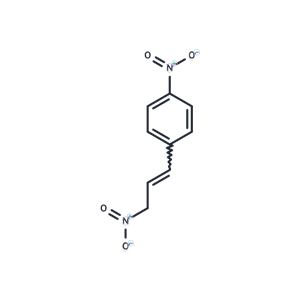

~,4-二硝基苯乙烯

产品名称 ~,4-二硝基苯乙烯

CAS号3156-41-0

分子式C8H6N2O4

分子量194.14

展开

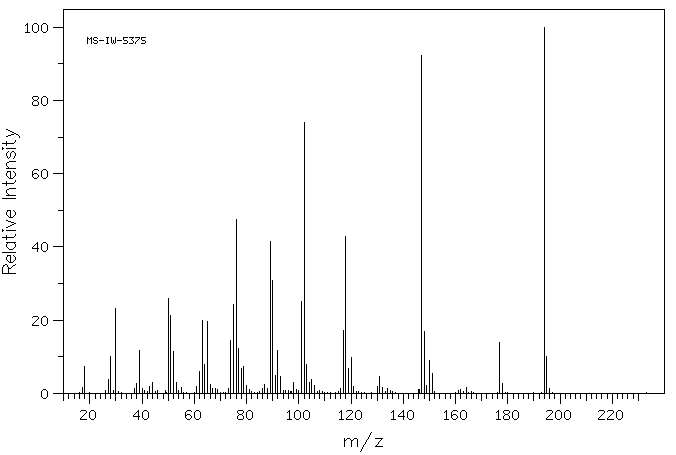

  • Mass

    MS-IW-5375
    4,beta-dinitrostyrene
    C8H6N2O4            (Mass of molecular ion:    194)


       Source Temperature: 160 °C
       Sample Temperature: 150 °C
       Direct, 75 eV


          17.0       1.5
          18.0       7.4
          27.0       3.9
          28.0      10.0
          30.0      23.3
          37.0       1.2
          38.0       2.8
          39.0      11.6
          40.0       1.2
          43.0       1.8
          44.0       2.9
          50.0      25.9
          51.0      21.4
          52.0      11.5
          53.0       2.9
          55.0       1.7
          61.0       1.8
          62.0       6.1
          63.0      19.8
          64.0       7.8
          65.0      19.6
          66.0       2.5
          67.0       1.4
          68.0       1.4
          69.0       1.0
          73.0       1.2
          74.0      14.4
          75.0      24.4
          76.0      47.6
          77.0      12.3
          78.0       6.8
          79.0       7.4
          80.0       2.1
          81.0       1.1
          86.0       1.2
          87.0       2.3
          88.0       1.4
          89.0      41.4
          90.0      30.8
          91.0       4.8
          92.0      11.6
          93.0       4.6
          98.0       2.9
          99.0       1.1
         101.0      25.0
         102.0      73.9
         103.0       8.0
         104.0       3.0
         105.0       3.7
         106.0       2.2
         116.0       1.2
         117.0      17.1
         118.0      42.8
         119.0       6.8
         120.0       9.7
         121.0       1.8
         130.0       1.9
         131.0       4.7
         132.0       1.7
         134.0       1.4
         146.0       1.0
         147.0      92.3
         148.0      16.8
         149.0       2.1
         150.0       9.0
         151.0       5.3
         162.0       1.1
         164.0       1.5
         177.0      13.8
         178.0       2.8
         194.0     100.0
         195.0      10.2
         196.0       1.2


KBr disc



nujol mull
