网站主页CAS数据库列表 29263-94-3更多图谱2-溴-2-甲基丙二酸二乙酯(29263-94-3)Raman光谱

2-溴-2-甲基丙二酸二乙酯

产品名称 2-溴-2-甲基丙二酸二乙酯

CAS号29263-94-3

分子式C8H13BrO4

分子量253.09

展开

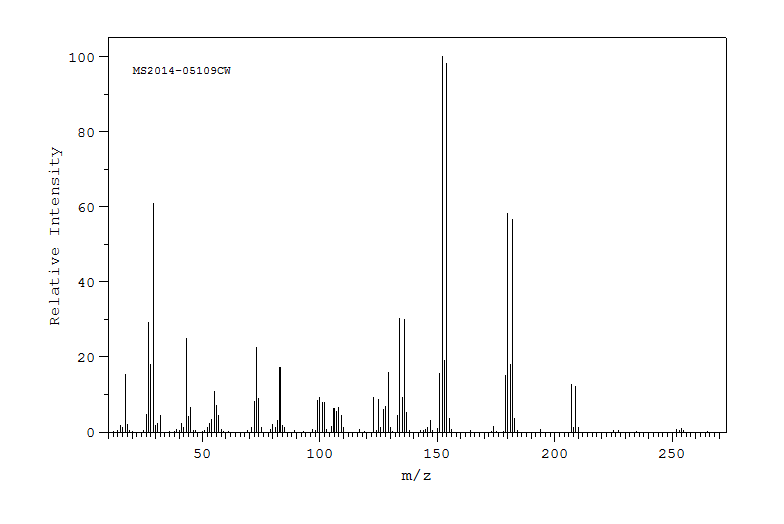

  • Mass

    MS2014-05109CW
    diethyl 2-bromo-2-methylmalonate
    C8H13BrO4           (Mass of molecular ion:    252)


       Source Temperature: 240 °C
       Sample Temperature:  20 °C
       Direct, 70 eV


          15.0       1.7
          16.0       1.3
          17.0      15.4
          18.0       2.0
          26.0       4.8
          27.0      29.3
          28.0      18.1
          29.0      61.0
          30.0       1.7
          31.0       2.3
          32.0       4.5
          41.0       2.4
          42.0       1.1
          43.0      24.9
          44.0       4.2
          45.0       6.6
          52.0       1.1
          53.0       2.3
          54.0       3.4
          55.0      10.9
          56.0       7.2
          57.0       4.4
          71.0       1.2
          72.0       8.2
          73.0      22.4
          74.0       9.0
          75.0       1.1
          80.0       2.1
          81.0       1.1
          82.0       3.0
          83.0      17.2
          84.0       1.7
          85.0       1.1
          99.0       8.4
         100.0       9.1
         101.0       8.0
         102.0       8.0
         105.0       1.6
         106.0       6.2
         107.0       5.5
         108.0       6.5
         109.0       4.3
         110.0       1.2
         123.0       9.1
         125.0       8.8
         126.0       1.3
         127.0       6.1
         128.0       6.8
         129.0      15.8
         130.0       1.2
         133.0       4.5
         134.0      30.3
         135.0       9.3
         136.0      30.1
         137.0       5.2
         146.0       1.2
         147.0       3.0
         151.0      15.7
         152.0     100.0
         153.0      19.0
         154.0      98.2
         155.0       3.5
         174.0       1.5
         179.0      15.0
         180.0      58.3
         181.0      18.1
         182.0      56.7
         183.0       3.6
         207.0      12.6
         208.0       1.2
         209.0      12.2
         210.0       1.1


90 MHz in CDCl3

in CDCl3


  • 1H NMR 89.56 MHz
    C8 H13 Br O4 0.05 ml : 0.5 ml CDCl3
    diethyl 2-bromo-2-methylmalonate
    ChemicalStructure
        Assign.     Shift(ppm)
    A 4.281 B 2.079 C 1.303

         Hz     ppm     Int.


        394.56   4.406    137
        387.31   4.325    443
        380.19   4.246    464
        376.63   4.206     23
        373.19   4.167    161
        186.25   2.080    945
        123.69   1.382    491
        116.63   1.303   1000
        109.50   1.223    442




in CDCl3



liquid film



4880 A,200 M,liquid
