反-2-辛烯

产品名称 反-2-辛烯

CAS号13389-42-9

分子式C8H16

分子量112.21

展开

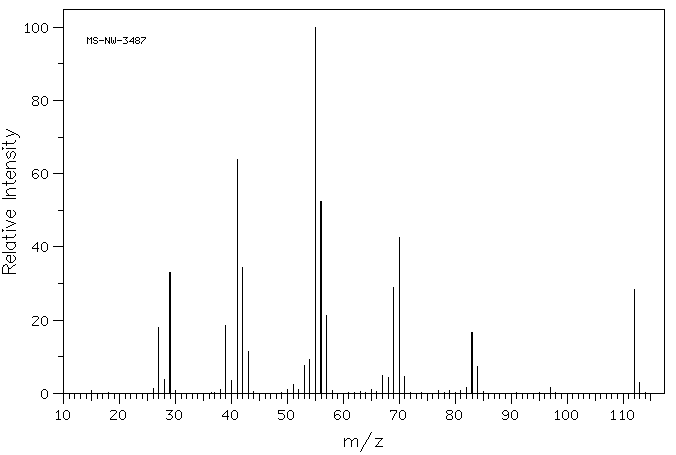

  • Mass

    MS-NW-3487
    trans-2-octene
    C8H16               (Mass of molecular ion:    112)


       Source Temperature: 280 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          26.0       1.4
          27.0      17.9
          28.0       3.8
          29.0      32.9
          38.0       1.1
          39.0      18.6
          40.0       3.4
          41.0      64.0
          42.0      34.4
          43.0      11.3
          50.0       1.1
          51.0       2.3
          52.0       1.0
          53.0       7.7
          54.0       9.2
          55.0     100.0
          56.0      52.3
          57.0      21.3
          65.0       1.0
          67.0       4.9
          68.0       4.3
          69.0      28.9
          70.0      42.7
          71.0       4.5
          82.0       1.7
          83.0      16.5
          84.0       7.3
          97.0       1.6
         112.0      28.3
         113.0       2.9


90 MHz in CDCl3


  • 1H NMR 89.56 MHz
    C8 H16 0.04 ml : 0.5 ml CDCl3
    trans-2-octene
    ChemicalStructure
        Assign.     Shift(ppm)
    A 5.47 to 5.34 B 1.95 C 1.633 D 1.52 to 1.06 E 0.883

         Hz     ppm     Int.


        490.63   5.479    100
        489.88   5.470    153
        488.75   5.458    287
        487.81   5.447    186
        485.75   5.424    608
        484.81   5.414    229
        483.75   5.402    468
        482.88   5.392    398
        480.75   5.368    378
        478.38   5.342    165
        468.19   5.228     33
        183.88   2.054     55
        176.94   1.976    182
        174.25   1.946    168
        173.63   1.939    169
        173.06   1.933    169
        172.50   1.927    170
        167.00   1.865     72
        165.88   1.853     75
        163.88   1.830     32
        163.31   1.824     37
        162.06   1.810     44
        149.94   1.675    461
        148.69   1.661    857
        147.94   1.652    484
        147.44   1.647    575
        146.69   1.638    564
        146.00   1.631    452
        145.31   1.623    696
        144.00   1.608    895
        142.75   1.594    401
        140.69   1.571     44
        133.75   1.494     40
        132.44   1.479     36
        131.81   1.472     35
        130.56   1.458     49
        126.81   1.416    135
        126.00   1.407    123
        122.75   1.371    191
        117.31   1.310    724
        115.69   1.292    780
        114.81   1.282    731
        112.81   1.260    948
        109.50   1.223    232
        107.44   1.200    160
        107.06   1.196    161
        104.75   1.170     97
        101.06   1.129     56
        100.75   1.125     55
         98.50   1.100     46
         97.00   1.084     34
         95.69   1.069     30
         92.13   1.029     39
         89.25   0.997     31
         86.31   0.964    158
         84.44   0.943    249
         82.50   0.922    199
         81.56   0.911    206
         79.13   0.884   1000
         74.88   0.837    131
         74.56   0.833    131
         73.13   0.817    183
         72.00   0.804    190
         69.00   0.771     79
         66.81   0.746     35
         66.50   0.743     35


in CDCl3

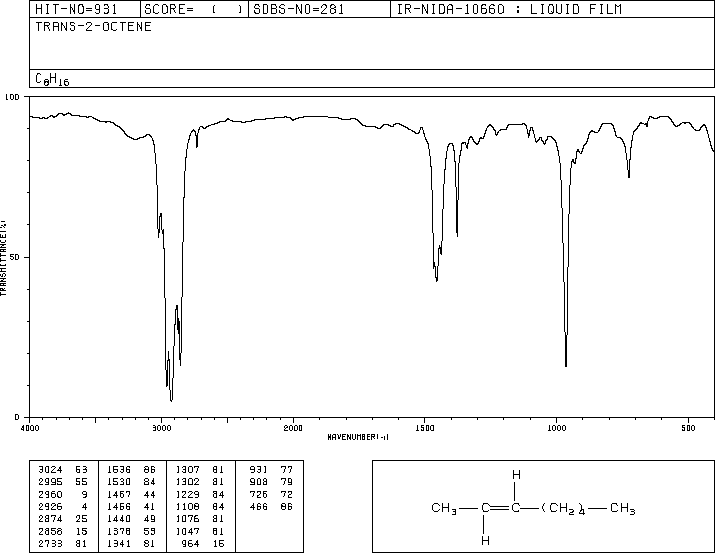

liquid film
