1,2-Diphenylethanedionedioxime

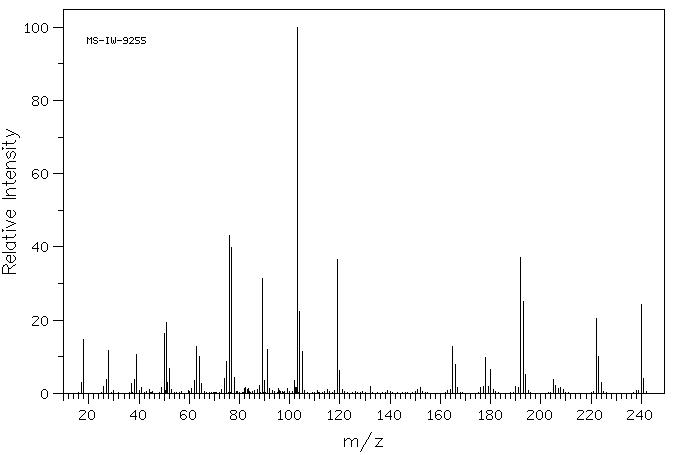

Mass

MS-IW-9255
1,2-diphenylethanedione dioxime
C14H12N2O2          (Mass of molecular ion:    240)

   Source Temperature: 170 °C
   Sample Temperature: 180 °C
   Direct, 75 eV

      17.0       3.0
      18.0      14.7
      26.0       2.0
      27.0       3.8
      28.0      11.8
      37.0       2.7
      38.0       3.9
      39.0      10.6
      41.0       1.7
      44.0       1.0
      49.0       1.5
      50.0      16.4
      51.0      19.3
      51.5       2.9
      52.0       6.8
      53.0       1.0
      61.0       1.4
      62.0       3.4
      63.0      12.7
      64.0      10.2
      65.0       2.8
      73.0       1.1
      74.0       4.0
      75.0       8.7
      76.0      43.0
      77.0      39.9
      78.0       4.4
      82.0       1.2
      82.5       1.6
      83.0       1.1
      83.5       1.2
      87.0       1.1
      88.0       2.2
      89.0      31.4
      90.0       3.6
      91.0      12.1
      92.0       1.4
      95.5       1.2
      99.0       1.2
     102.0       3.5
     102.5       1.7
     103.0     100.0
     104.0      22.4
     105.0      11.3
     115.0       1.0
     119.0      36.5
     120.0       6.2
     121.0       1.0
     132.0       1.8
     151.0       1.1
     152.0       1.6
     164.0       1.1
     165.0      12.7
     166.0       7.9
     167.0       1.5
     176.0       1.6
     177.0       1.8
     178.0       9.8
     179.0       1.9
     180.0       6.4
     181.0       1.1
     190.0       2.0
     191.0       1.6
     192.0      37.2
     193.0      25.1
     194.0       5.2
     205.0       3.8
     206.0       2.1
     207.0       1.2
     208.0       1.7
     209.0       1.1
     222.0      20.5
     223.0      10.0
     224.0       3.1
     240.0      24.2
     241.0       4.1
