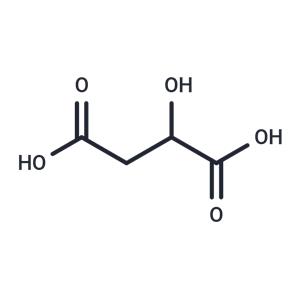

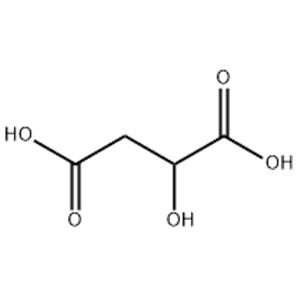

Malic acid

Mass

MS-NW-3754
DL-malic acid
C4H6O5              (Mass of molecular ion:    134)

   Source Temperature: 220 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      14.0       3.8
      15.0      14.5
      17.0       1.3
      18.0       5.8
      19.0      21.9
      26.0       5.2
      27.0      20.7
      28.0       6.0
      29.0      21.4
      30.0       1.4
      31.0       2.8
      41.0       2.1
      42.0      24.0
      43.0      97.3
      44.0      22.9
      45.0      26.5
      46.0       2.8
      47.0      14.3
      53.0       1.6
      55.0       8.9
      60.0      15.7
      69.0       2.0
      71.0     100.0
      72.0      25.4
      73.0       2.4
      88.0       6.1
      89.0      84.5
      90.0       7.6
      99.0       1.6

Assign. Shift(ppm) B 4.616 C *1 2.94 D *1 2.89 THE SOLVENT SIGNAL REMOVED.

     Hz     ppm     Int.

    419.38   4.683    293
    414.19   4.625    370
    413.19   4.614    444
    408.00   4.556    331
    262.75   2.934   1000
    257.69   2.878    628
    256.31   2.862    587
