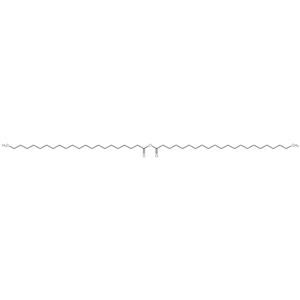

BEHENIC ANHYDRIDE

Mass

MS-IW-4197
docosanoic anhydride
C44H86O3            (Mass of molecular ion:    662)

   Source Temperature: 200 °C
   Sample Temperature: 200 °C
   Direct, 75 eV

      17.0       2.6
      18.0      15.4
      27.0       1.8
      28.0       2.0
      29.0       4.9
      39.0       1.4
      41.0      13.4
      42.0       3.0
      43.0      26.9
      44.0       1.2
      54.0       2.5
      55.0      25.4
      56.0       7.7
      57.0      29.9
      58.0       1.7
      60.0      10.8
      61.0       5.7
      67.0       5.4
      68.0       5.4
      69.0      16.0
      70.0       8.4
      71.0      17.7
      72.0       1.3
      73.0      15.1
      74.0       1.9
      79.0       1.6
      80.0       1.5
      81.0       5.8
      82.0       6.8
      83.0      21.4
      84.0      20.8
      85.0      11.9
      86.0       1.0
      87.0       6.0
      93.0       1.5
      94.0       1.7
      95.0       4.3
      96.0       6.0
      97.0      19.8
      98.0     100.0
      99.0      10.2
     100.0       1.0
     101.0       2.0
     102.0       1.0
     107.0       1.0
     109.0       2.2
     110.0       2.5
     111.0      15.4
     112.0      23.2
     113.0       4.2
     115.0       3.4
     116.0       2.8
     121.0       1.7
     123.0       1.5
     124.0       1.7
     125.0       5.5
     126.0       2.4
     127.0       1.9
     129.0      11.2
     130.0       1.8
     135.0       1.3
     138.0       1.2
     139.0       2.3
     140.0       1.1
     141.0       1.3
     143.0       2.6
     153.0       1.3
     157.0       1.6
     171.0       3.0
     172.0       1.3
     185.0       5.7
     186.0       1.2
     199.0       2.3
     213.0       1.6
     227.0       2.2
     241.0       4.6
     246.0       1.7
     255.0       2.0
     283.0       1.5
     297.0       4.6
     298.0       1.0
     323.0       1.1
     340.0      12.7
     341.0       3.1

Assign. Shift(ppm) A 2.436 B 1.655 C 1.30 D 1.26 E 0.879

     Hz     ppm     Int.

    981.32   2.456     40
    974.00   2.438     72
    966.43   2.419     44
    661.87   1.657     26
    654.42   1.638     21
    536.38   1.343     20
    535.89   1.341     20
    535.52   1.340     20
    526.98   1.319     33
    520.39   1.303     47
    520.02   1.302     46
    502.56   1.258   1000
    358.64   0.898     37
    351.81   0.881    111
    344.85   0.863     43
