DL-NORADRENALINE HYDROCHLORIDE

Mass

MS-NW-8325

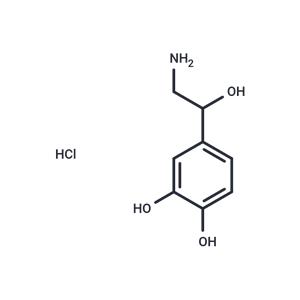

(+-)-4-(2-amino-1-hydroxyethyl)-1,2-benzenediol hydrochloride
C8H11NO3 HCl        (Mass of molecular ion:    169)

   Source Temperature: 180 °C
   Sample Temperature: 150 °C
   Direct, 75 eV

      15.0       5.5
      27.0      11.1
      28.0      55.5
      29.0       8.3
      30.0     100.0
      31.0       8.3
      32.0      50.0
      39.0      22.2
      40.0       2.7
      41.0      11.1
      42.0       5.5
      43.0      19.4
      44.0       5.5
      45.0      41.6
      50.0       5.5
      51.0      13.8
      52.0       5.5
      53.0       8.3
      54.0       2.7
      55.0      13.8
      57.0       8.3
      62.0       2.7
      63.0       8.3
      64.0       5.5
      65.0      52.7
      66.0       8.3
      67.0       8.3
      68.0       2.7
      69.0       5.5
      71.0       5.5
      76.0       2.7
      77.0      16.6
      78.0      13.8
      79.0       5.5
      80.0       5.5
      81.0       8.3
      82.0       2.7
      83.0       2.7
      93.0      77.7
      94.0      13.8
      95.0       5.5
      97.0       2.7
     103.0       2.7
     104.0       8.3
     105.0       5.5
     106.0       5.5
     107.0       2.7
     108.0       2.7
     109.0       5.5
     110.0       5.5
     111.0      22.2
     122.0       8.3
     123.0      25.0
     124.0      13.8
     132.0       5.5
     134.0       5.5
     135.0       2.7
     136.0       5.5
     137.0      13.8
     138.0      13.8
     139.0     100.0
     140.0      22.2
     141.0       2.7
     149.0       5.5
     150.0       5.5
     151.0      47.2
     152.0       5.5
     169.0      13.8
     181.0       2.7

Assign. Shift(ppm) A 7.003 B 6.98 C 6.913 D 4.93 F *1 3.308 G *1 3.259 J(D,G)=8.7HZ J(D,F)=4.3HZ J(F,G)=-13.1HZ THE SOLVENT SIGNAL REMOVED.

     Hz     ppm     Int.

   2799.80   7.006    633
   2797.73   7.001    748
   2796.63   6.998    698
   2792.60   6.988     37
   2788.33   6.977   1000
   2785.03   6.969     29
   2767.09   6.924    431
   2764.89   6.919    384
   2758.42   6.903    250
   2756.71   6.898    232
   2756.35   6.897    229
   1333.74   3.338    185
   1329.47   3.327    215
   1320.68   3.305    572
   1316.41   3.294    536
   1310.30   3.279    565
   1301.64   3.257    527
   1297.24   3.246    193
   1288.57   3.225    213
