WebSite > CAS DataBase List > 506-37-6More Spectrum > Nervonic acid(506-37-6)Raman

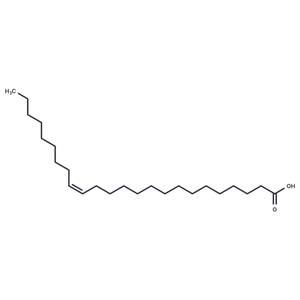

Nervonic acid

Product Name Nervonic acid

CAS506-37-6

MFC24H46O2

MW366.62

¹³CNMR

Mass

MS-KW-0185
cis-15-tetracosenoic acid
C24H46O2            (Mass of molecular ion:    366)

   Source Temperature: 170 °C
   Sample Temperature: 150 °C
   Direct, 75 eV

      17.0       1.7
      18.0       8.6
      27.0       3.9
      28.0       3.0
      29.0      14.0
      39.0       4.0
      41.0      45.6
      42.0       9.2
      43.0      57.2
      44.0       2.6
      45.0       2.9
      53.0       3.1
      54.0      17.6
      55.0     100.0
      56.0      34.1
      57.0      58.6
      58.0       2.6
      59.0       2.2
      60.0      10.4
      61.0       2.4
      65.0       1.2
      66.0       1.9
      67.0      24.7
      68.0      19.0
      69.0      83.5
      70.0      36.8
      71.0      29.2
      72.0       1.6
      73.0      13.8
      74.0       1.3
      77.0       1.1
      79.0       3.7
      80.0       4.1
      81.0      23.6
      82.0      28.5
      83.0      79.9
      84.0      37.8
      85.0      18.0
      86.0       1.3
      87.0       4.6
      91.0       1.3
      93.0       2.6
      94.0       4.4
      95.0      18.1
      96.0      29.9
      97.0      72.4
      98.0      34.5
      99.0       7.8
     100.0       3.3
     101.0       6.4
     102.0       1.0
     105.0       1.0
     107.0       2.4
     108.0       3.6
     109.0      11.3
     110.0      17.5
     111.0      38.7
     112.0      14.6
     113.0       5.5
     114.0       7.3
     115.0       5.9
     116.0       1.9
     119.0       1.9
     121.0       3.9
     122.0       2.7
     123.0       9.5
     124.0      11.7
     125.0      21.3
     126.0       9.1
     127.0       8.2
     128.0       2.2
     129.0       6.4
     130.0       1.1
     133.0       2.1
     134.0       3.2
     135.0       4.4
     136.0       2.1
     137.0       8.6
     138.0       9.9
     139.0      12.8
     140.0       6.1
     141.0       3.2
     142.0       1.1
     143.0       3.2
     147.0       1.9
     148.0       3.0
     149.0       3.3
     150.0       1.7
     151.0       6.5
     152.0       8.1
     153.0       9.0
     154.0       6.3
     155.0       2.6
     157.0       2.4
     161.0       1.5
     162.0       1.2
     163.0       2.2
     164.0       1.1
     165.0       4.7
     166.0       5.2
     167.0       5.5
     168.0       3.5
     169.0       2.3
     171.0       2.3
     175.0       1.3
     177.0       1.4
     179.0       3.6
     180.0       4.0
     181.0       4.0
     182.0       2.7
     183.0       1.7
     185.0       2.2
     189.0       1.0
     191.0       1.0
     193.0       3.0
     194.0       3.8
     195.0       3.3
     196.0       2.3
     197.0       1.3
     199.0       1.3
     207.0       3.1
     208.0       4.2
     209.0       2.6
     210.0       2.0
     211.0       1.3
     213.0       1.2
     221.0       3.3
     222.0       4.5
     223.0       2.1
     224.0       1.6
     225.0       1.2
     227.0       1.1
     235.0       3.6
     236.0       4.6
     237.0       1.7
     238.0       1.3
     239.0       1.0
     249.0       3.8
     250.0       5.0
     251.0       1.8
     252.0       1.1
     253.0       1.1
     263.0       3.6
     264.0       5.5
     265.0       1.7
     277.0       3.4
     278.0       3.4
     279.0       1.1
     291.0       2.7
     292.0       2.4
     304.0       2.3
     305.0       3.0
     306.0       2.8
     307.0       1.1
     319.0       1.5
     320.0       1.9
     330.0       2.1
     348.0      41.2
     349.0      11.4
     350.0       1.7
     366.0       4.3
     367.0       1.2
     368.0       3.7

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₂₄ H₄₆ O₂	0.034 g : 0.5 ml CDCl₃
cis-15-tetracosenoic acid

    Assign.     Shift(ppm)

      A             5.35
      B             2.345
      C             2.013
      D             1.631
      E             1.26
      F             0.881

     Hz     ppm     Int.

   2141.97   5.360     89
   2138.43   5.351     95
   2137.45   5.349    169
   2136.35   5.346     98
   2132.81   5.337     86
    944.82   2.365     93
    937.38   2.346    165
    929.81   2.327    102
    814.09   2.038     60
    807.37   2.021    146
    801.76   2.007    135
    795.17   1.990     65
    658.69   1.649     49
    651.49   1.631     72
    644.04   1.612     56
    537.60   1.346    114
    529.91   1.326    200
    519.04   1.299    323
    518.43   1.298    323
    518.07   1.297    324
    503.17   1.260   1000
    358.76   0.898    113
    354.74   0.888     64
    352.05   0.881    344
    344.97   0.864    132

in CDCl3

KBr disk

Nujol
