WebSite > CAS DataBase List >  46022-05-3More Spectrum > (1R,2R)-(-)-1,2-Cyclohexanedicarboxylic acid(46022-05-3)IR1

46022-05-3

(1R,2R)-(-)-1,2-Cyclohexanedicarboxylic acid

Product Name (1R,2R)-(-)-1,2-Cyclohexanedicarboxylic acid

CAS46022-05-3

MFC8H12O4

MW172.18

More

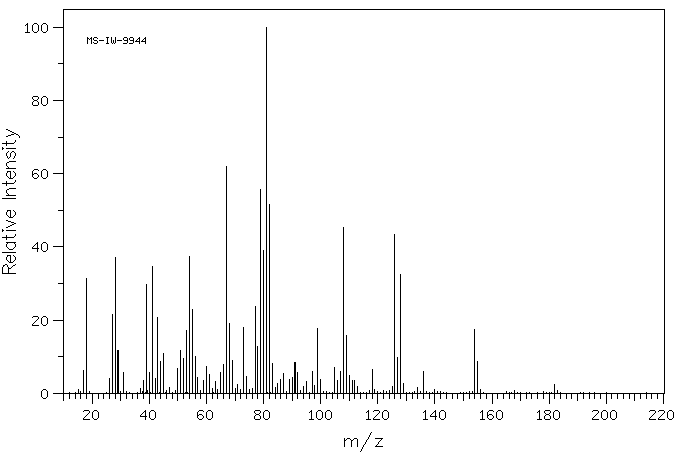

  • 46022-05-3_ms
    Mass

    MS-IW-9944
    (1R-trans)-1,2-cyclohexanedicarboxylic acid
    C8H12O4             (Mass of molecular ion:    172)


       Source Temperature: 150 °C
       Sample Temperature: 150 °C
       Direct, 75 eV


          15.0       1.1
          17.0       6.2
          18.0      31.5
          26.0       4.0
          27.0      21.6
          28.0      37.1
          29.0      11.6
          31.0       5.7
          37.0       1.4
          38.0       3.5
          39.0      29.7
          40.0       5.7
          41.0      34.7
          42.0       4.1
          43.0      20.6
          44.0       8.8
          45.0      11.0
          47.0       1.6
          50.0       6.9
          51.0      11.8
          52.0       9.4
          53.0      17.3
          54.0      37.5
          55.0      22.8
          56.0      10.0
          57.0       4.4
          59.0       3.4
          60.0       7.4
          61.0       5.1
          62.0       1.4
          63.0       3.2
          64.0       1.0
          65.0       5.6
          66.0       7.8
          67.0      62.1
          68.0      19.2
          69.0       8.9
          70.0       1.4
          71.0       2.5
          72.0       1.1
          73.0      17.9
          74.0       4.5
          75.0       1.1
          76.0       1.3
          77.0      23.8
          78.0      12.8
          79.0      55.6
          80.0      38.9
          81.0     100.0
          82.0      51.7
          83.0       8.1
          84.0       1.7
          85.0       2.8
          86.0       3.9
          87.0       5.3
          89.0       3.9
          90.0       4.3
          91.0       8.5
          92.0       5.6
          94.0       1.9
          95.0       3.2
          97.0       6.0
          98.0       2.2
          99.0      17.6
         100.0       3.8
         105.0       7.0
         106.0       3.6
         107.0       5.9
         108.0      45.3
         109.0      15.8
         110.0       5.0
         111.0       3.4
         112.0       3.4
         113.0       1.8
         118.0       6.4
         119.0       1.1
         125.0       2.0
         126.0      43.5
         127.0       9.7
         128.0      32.6
         129.0       2.7
         134.0       1.6
         136.0       6.1
         140.0       1.0
         154.0      17.4
         155.0       8.8
         156.0       1.0
         182.0       2.5


KBr disc

  • 46022-05-3_ir1_2

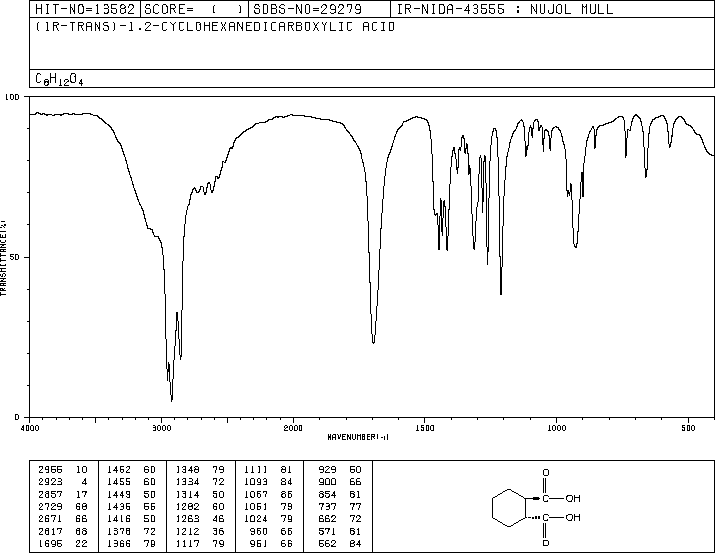

nujol mull

  • 46022-05-3_ir2
