TRANS-1,2-CYCLOHEXANEDIOL

Mass

MS-NW-2259

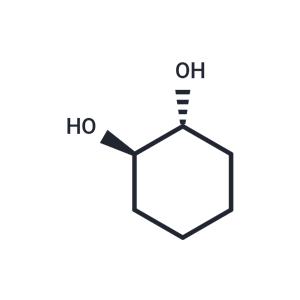

trans-1,2-cyclohexanediol
C6H12O2             (Mass of molecular ion:    116)

   Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       2.3
      17.0       2.1
      18.0      10.0
      19.0       1.9
      26.0       2.1
      27.0      16.3
      28.0       3.7
      29.0      12.3
      30.0       1.1
      31.0      10.9
      32.0       1.0
      38.0       1.6
      39.0      16.2
      40.0       3.6
      41.0      41.4
      42.0      30.7
      43.0      17.9
      44.0      32.1
      45.0       5.3
      47.0       1.7
      50.0       1.2
      51.0       1.8
      53.0       3.7
      54.0      10.8
      55.0      15.6
      56.0      10.5
      57.0      76.8
      58.0       4.3
      60.0       1.9
      65.0       1.3
      67.0       8.2
      68.0       4.5
      69.0      24.8
      70.0     100.0
      71.0       6.3
      72.0       1.8
      73.0       1.7
      74.0       1.4
      77.0       1.6
      79.0       5.0
      80.0      10.6
      81.0       2.2
      83.0      29.8
      84.0       1.9
      96.0       1.3
      97.0       7.7
      98.0      31.9
      99.0       2.2
     116.0       9.9

Assign. Shift(ppm) A 3.91 B 3.33 C 1.95 D 1.69 E 1.56 to 1.00 THE SHIFT VALUES WERE OBTAINED AT 400MHZ.

     Hz     ppm     Int.

    367.63   4.105   1000
    298.50   3.333    287
    173.63   1.939    284
    151.19   1.689    293
    110.75   1.237    523
