1122-83-4

N-THIONYLANILINE

Product Name N-THIONYLANILINE

CAS1122-83-4

MFC6H5NOS

MW139.18

More

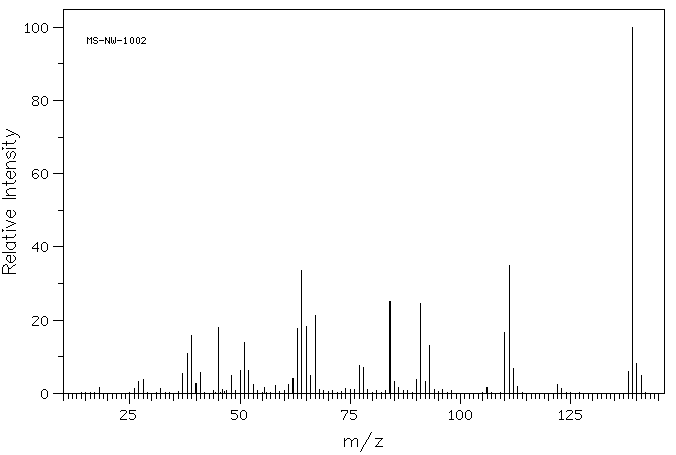

  • 1122-83-4_ms
    Mass

    MS-NW-1002
    N-sulfinylaniline
    C6H5NOS             (Mass of molecular ion:    139)


       Source Temperature: 260 °C
       Sample Temperature: 130 °C
       Reservoir, 75 eV


          18.0       1.7
          26.0       1.4
          27.0       3.2
          28.0       3.8
          32.0       1.3
          37.0       5.4
          38.0      10.9
          39.0      15.9
          40.0       2.7
          41.0       5.7
          45.0      18.0
          46.0       1.1
          48.0       5.0
          50.0       6.3
          51.0      14.0
          52.0       6.3
          53.0       2.3
          55.5       1.7
          58.0       2.2
          61.0       2.4
          62.0       4.0
          63.0      17.6
          64.0      33.5
          65.0      18.3
          66.0       4.9
          67.0      21.3
          68.0       1.1
          74.0       1.4
          75.0       1.0
          76.0       1.0
          77.0       7.6
          78.0       7.1
          79.0       1.0
          84.0      25.2
          85.0       3.3
          86.0       1.7
          90.0       3.7
          91.0      24.6
          92.0       3.3
          93.0      13.2
          94.0       1.0
          96.0       1.0
         106.0       1.6
         110.0      16.7
         111.0      35.0
         112.0       6.8
         113.0       1.9
         122.0       2.3
         123.0       1.3
         138.0       6.1
         139.0     100.0
         140.0       8.2
         141.0       4.9


90 MHz in CDCl3

  • 1122-83-4_1hnmr

    1H NMR 89.56 MHz
    C6 H5 N O S 0.02 ml : 0.5 ml CDCl3
    N-sulfinylaniline
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.849 B 7.30 to 7.51

         Hz     ppm     Int.


        708.44   7.911    350
        704.75   7.870    446
        703.25   7.853    306
        701.06   7.828    466
        700.00   7.816    269
        698.56   7.800    578
        669.31   7.474    200
        666.38   7.441    600
        665.63   7.433    490
        664.19   7.417    321
        662.44   7.397    657
        661.31   7.384    316
        659.63   7.366   1000
        658.63   7.355    257
        658.25   7.350    256


in CDCl3

  • 1122-83-4_13cnmr

liquid film

  • 1122-83-4_ir1

  • 1122-83-4_raman
