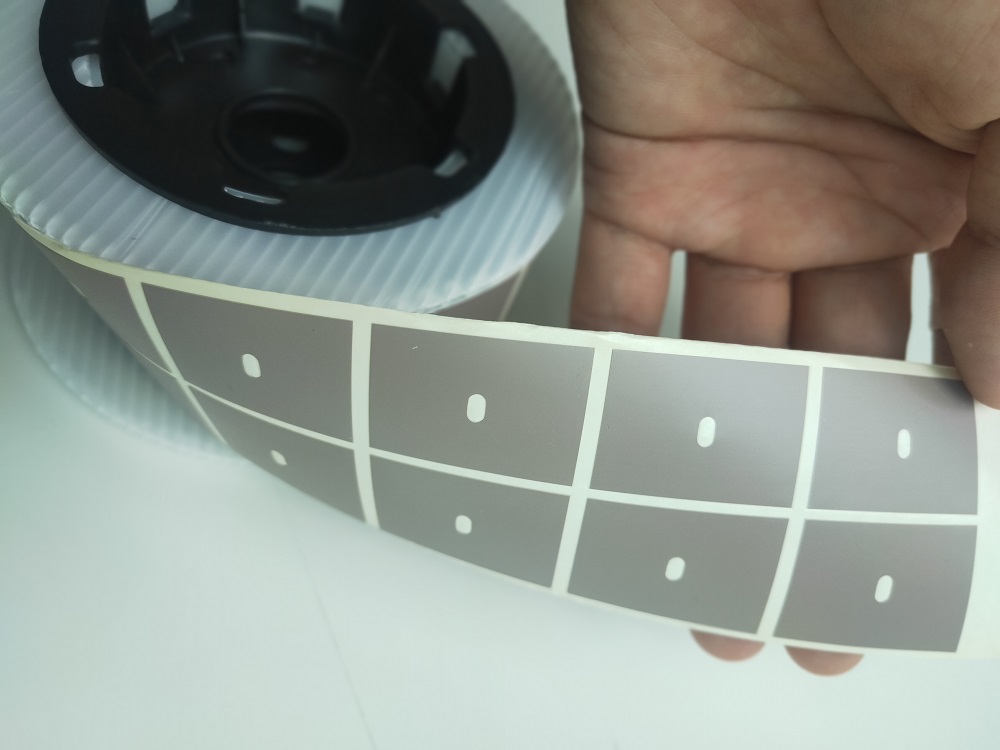

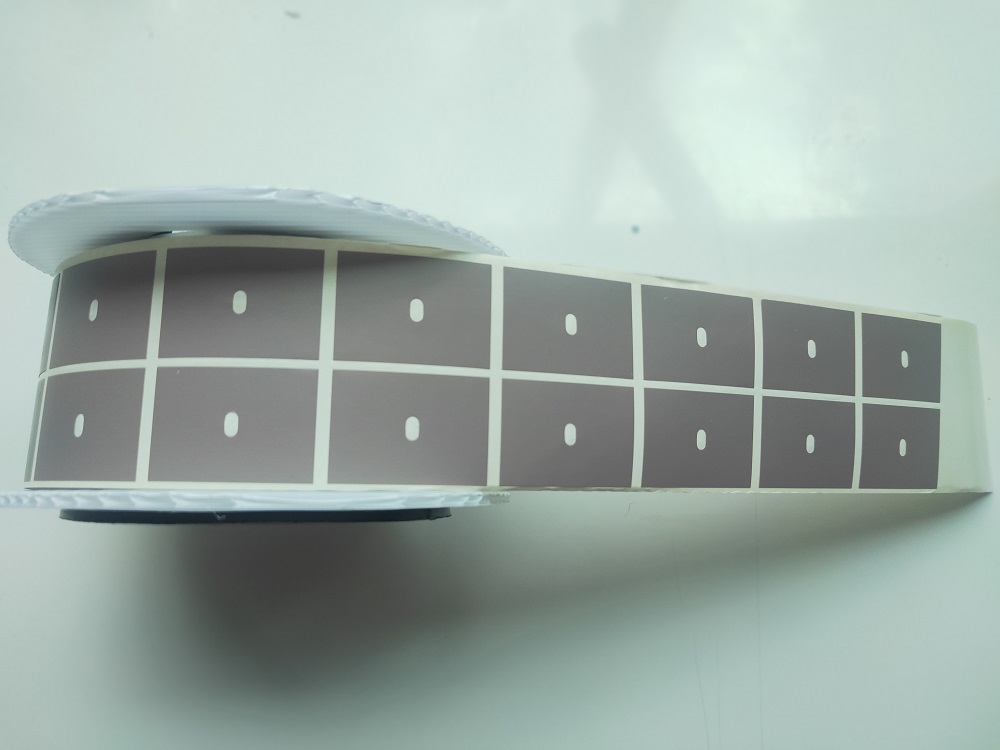

BERGQUIST PPK4 POLY-PAD K-4 SIL PAD TSP PPK900

1.Thermal impedance: 0.95°C-in2/W (@50 psi)

2.For applications requiring conformal coatings

3.Polyester based

4.Designed for silicone-sensitive applications

BERGQUIST SIL PAD TSP PPK900, Polyester-Based, Thermally Conductive Insulation Material

BERGQUIST SIL PAD TSP PPK900 Known as BERGQUIST POLY-PAD K-4

BERGQUIST POLY-PAD K-4 is a composite of film coated with a polyester resin.

BERGQUIST PPK4  is an economical insulator and the film carrier provides excellent dielectric and physical strength.Polyester-based,

thermally conductive insulators from Henkel provide a complete family of material for silicone-sensitive applications. SIL PADS

are ideally suited for applications requiring conformal coatings or applications where silicone contamination is a concern

(telecom & certain aerospace applications). SIL PADS are constructed with ceramic-filled polyester resins coating either side of a

fiberglass carrier or a film carrier. The SIL PAD family offers a complete range of performance characteristics to match individual

applications.Options and ConfigurationsStandard thickness - 0.006"Custom made configurations available upon request.
