5,5-二甲氧基-1,2,3,4-四氯环戊二烯

产品名称 5,5-二甲氧基-1,2,3,4-四氯环戊二烯

CAS号2207-27-4

分子式C7H6Cl4O2

分子量263.93

展开

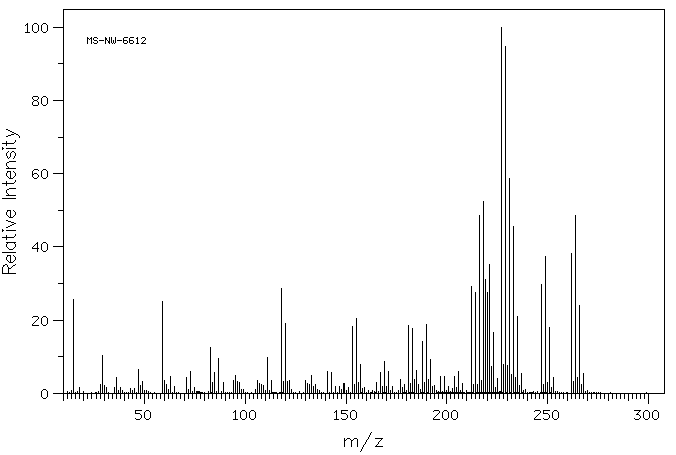

  • Mass

    MS-NW-6612
    1,2,3,4-tetrachloro-5,5-dimethoxycyclopentadiene
    C7H6Cl4O2           (Mass of molecular ion:    262)


       Source Temperature: 270 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          15.0      25.6
          18.0       1.6
          28.0       2.5
          29.0      10.3
          30.0       2.2
          31.0       1.7
          35.0       1.5
          36.0       4.3
          38.0       1.5
          43.0       1.4
          45.0       1.3
          47.0       6.5
          48.0       2.1
          49.0       3.2
          59.0      25.1
          60.0       3.5
          61.0       2.3
          62.0       1.0
          63.0       4.7
          65.0       1.8
          71.0       4.2
          72.0       1.0
          73.0       6.0
          75.0       1.7
          83.0      12.4
          84.0       2.9
          85.0       5.8
          87.0       9.6
          89.0       2.9
          94.0       3.5
          95.0       4.8
          96.0       3.2
          97.0       3.1
          98.0       1.0
          99.0       1.0
         105.0       1.1
         106.0       3.5
         107.0       2.6
         108.0       2.4
         109.0       2.1
         111.0       9.9
         113.0       3.5
         118.0      28.6
         119.0       3.2
         120.0      19.1
         121.0       3.2
         122.0       3.5
         123.0       1.0
         130.0       3.6
         131.0       2.7
         132.0       2.5
         133.0       4.9
         134.0       1.8
         135.0       2.4
         136.0       1.1
         141.0       5.9
         143.0       5.7
         145.0       2.0
         147.0       1.8
         148.0       1.0
         149.0       2.8
         151.0       1.5
         153.0      18.4
         154.0       2.5
         155.0      20.4
         156.0       2.9
         157.0       7.9
         158.0       1.2
         159.0       1.6
         165.0       3.1
         167.0       5.7
         168.0       2.0
         169.0       8.8
         170.0       2.0
         171.0       6.0
         173.0       2.0
         177.0       3.7
         178.0       1.5
         179.0       2.5
         181.0      18.6
         182.0       2.6
         183.0      17.8
         184.0       3.7
         185.0       6.3
         186.0       2.4
         187.0       1.1
         188.0      14.3
         189.0       2.9
         190.0      18.8
         191.0       3.9
         192.0       9.3
         193.0       1.8
         194.0       2.1
         197.0       4.7
         199.0       4.7
         201.0       1.9
         203.0       1.4
         204.0       4.7
         205.0       1.5
         206.0       6.0
         208.0       2.8
         212.0      29.2
         213.0       2.4
         214.0      27.6
         215.0       2.3
         216.0      48.7
         217.0       3.5
         218.0      52.5
         219.0      31.1
         220.0      27.5
         221.0      35.3
         222.0       7.4
         223.0      16.7
         224.0       1.5
         225.0       4.1
         227.0     100.0
         228.0       8.0
         229.0      94.9
         230.0       7.7
         231.0      58.7
         232.0       5.2
         233.0      45.6
         234.0       4.2
         235.0      20.9
         236.0       2.1
         237.0       5.3
         239.0       1.1
         247.0      29.7
         248.0       2.3
         249.0      37.4
         250.0       3.0
         251.0      18.0
         252.0       1.5
         253.0       4.3
         262.0      38.2
         263.0       3.3
         264.0      48.6
         265.0       4.3
         266.0      24.0
         267.0       2.5
         268.0       5.5


parameter in CDCl3


  • 1H NMR 300 MHz
    C7 H6 Cl4 O2 0.05 ml : 0.5 ml CDCl3
    1,2,3,4-tetrachloro-5,5-dimethoxycyclopentadiene
    ChemicalStructure
        Parameter     ppm  Hz
    D(A) 3.350

         Hz     ppm     Int.


       1005.00   3.350   1000


in CDCl3



liquid film



4880 A,200 M,liquid
