网站主页CAS数据库列表 17228-64-7更多图谱2-氯-6-甲氧基吡啶(17228-64-7)质谱(MS)

2-氯-6-甲氧基吡啶

产品名称 2-氯-6-甲氧基吡啶

CAS号17228-64-7

分子式C6H6ClNO

分子量143.57

展开

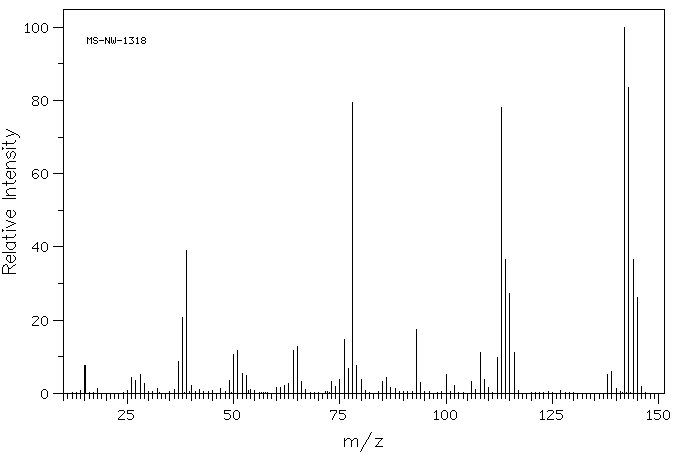

  • Mass

    MS-NW-1318
    2-chloro-6-methoxypyridine
    C6H6ClNO            (Mass of molecular ion:    143)


       Source Temperature: 260 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          15.0       7.5
          18.0       1.4
          26.0       4.4
          27.0       3.5
          28.0       5.2
          29.0       2.8
          32.0       1.3
          36.0       1.1
          37.0       8.8
          38.0      20.6
          39.0      38.9
          40.0       2.1
          42.0       1.1
          47.0       1.2
          49.0       3.6
          50.0      10.5
          51.0      11.7
          52.0       5.4
          53.0       4.9
          54.0       1.0
          60.0       1.6
          61.0       1.7
          62.0       2.2
          63.0       2.8
          64.0      11.8
          65.0      12.8
          66.0       3.2
          67.0       1.0
          73.0       3.3
          74.0       1.9
          75.0       3.9
          76.0      14.8
          77.0       6.9
          78.0      79.4
          79.0       7.7
          80.0       3.7
          85.0       3.2
          86.0       4.4
          87.0       1.5
          88.0       1.4
          93.0      17.5
          94.0       2.9
         100.0       5.1
         102.0       2.1
         106.0       3.2
         107.0       1.0
         108.0      11.2
         109.0       3.7
         110.0       1.6
         112.0       9.9
         113.0      78.0
         114.0      36.6
         115.0      27.3
         116.0      11.1
         138.0       5.2
         139.0       5.9
         140.0       1.4
         142.0     100.0
         143.0      83.7
         144.0      36.5
         145.0      26.3
         146.0       1.9


90 MHz in CDCl3

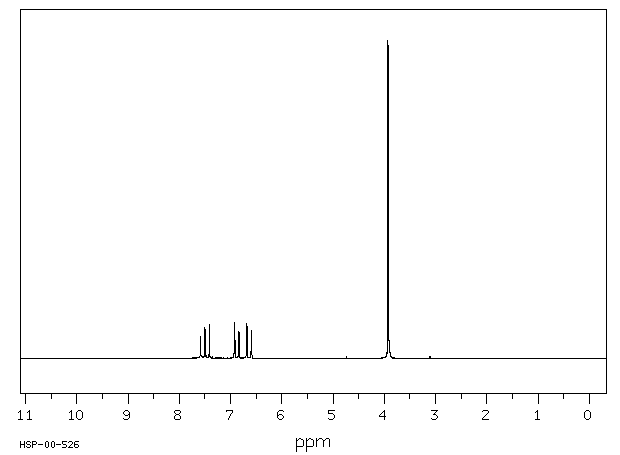

  • 1H NMR 89.56 MHz
    C6 H6 Cl N O 0.04 ml : 0.5 ml CDCl3
    2-chloro-6-methoxypyridine
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.50 B 6.89 C 6.65 D 3.93

         Hz     ppm     Int.


        679.31   7.585     69
        671.81   7.502     98
        671.19   7.495     91
        663.69   7.411    106
        620.06   6.924    105
        619.38   6.916    112
        612.63   6.841     86
        611.88   6.833     81
        598.75   6.686    111
        598.06   6.678    101
        590.63   6.595     88
        589.94   6.588     82
        351.81   3.929   1000


in CDCl3



CCl4 solution

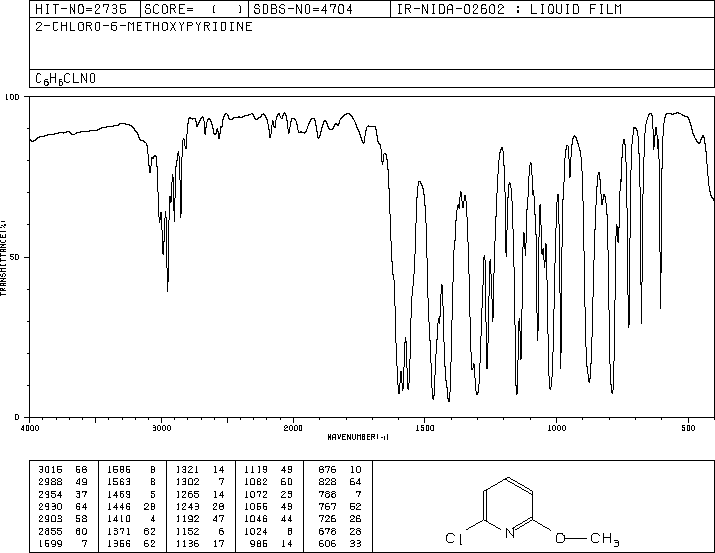

liquid film
