正壬基苯

产品名称 正壬基苯

CAS号1081-77-2

分子式C15H24

分子量204.35

展开


  • Mass

    MS-NW-5132
    nonylbenzene
    C15H24              (Mass of molecular ion:    204)


       Source Temperature: 260 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          27.0       3.8
          29.0       6.1
          39.0       3.2
          41.0       9.6
          42.0       1.5
          43.0      13.2
          51.0       1.5
          55.0       3.6
          56.0       1.6
          57.0      11.1
          65.0       4.8
          69.0       1.4
          70.0       1.3
          71.0       5.9
          77.0       3.2
          78.0       4.6
          79.0       2.7
          83.0       1.2
          91.0      73.2
          92.0     100.0
          93.0       8.2
         103.0       1.6
         104.0       3.9
         105.0       9.5
         106.0       2.1
         117.0       1.6
         119.0       2.5
         120.0       1.2
         133.0       5.9
         134.0       1.6
         204.0      22.3
         205.0       4.0


90 MHz in CDCl3


  • 1H NMR 89.56 MHz
    C15 H24 0.04 ml : 0.5 ml CDCl3
    nonylbenzene
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.42 to 6.99 B 2.58 C 1.60 D 1.26 E 0.88

         Hz     ppm     Int.


        657.94   7.347     50
        652.69   7.288     42
        650.06   7.259    116
        647.75   7.233     98
        643.94   7.191    642
        641.69   7.165    139
        640.44   7.151    102
        639.88   7.145     91
        638.75   7.133     58
        638.00   7.124     70
        637.38   7.117     57
        636.63   7.109     68
        239.63   2.676     71
        232.75   2.599    143
        224.81   2.511    139
        142.31   1.589     57
        113.06   1.263   1000
         83.63   0.934    102
         80.81   0.903     85
         78.44   0.876    326
         72.31   0.808     74


in CDCl3

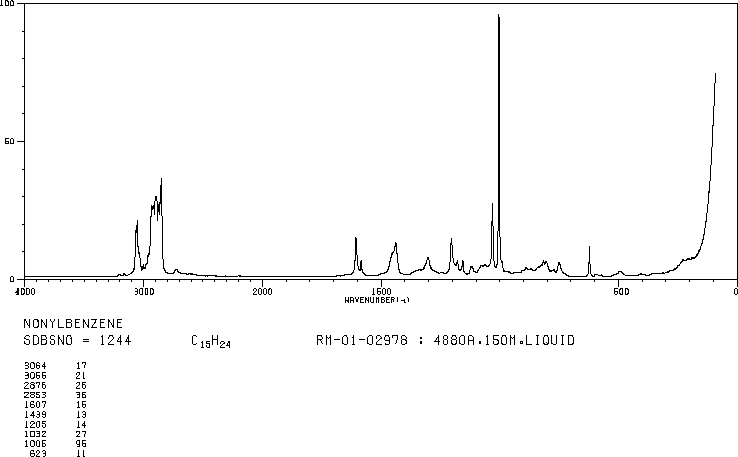

liquid film



4880 A,150M,liquid
