网站主页CAS数据库列表 1005-56-7更多图谱硫代氯甲酸苯酯(1005-56-7)核磁图(1HNMR)

硫代氯甲酸苯酯

产品名称 硫代氯甲酸苯酯

CAS号1005-56-7

分子式C7H5ClOS

分子量172.63

展开


  • Mass

    MS-IW-1511
    o-phenyl chloro(thioformate)
    C7H5ClOS            (Mass of molecular ion:    172)


       Source Temperature: 250 °C
       Sample Temperature: 160 °C
       Reservoir, 75 eV


          27.0       2.0
          32.0       1.9
          36.0       1.0
          37.0       2.2
          38.0       5.6
          39.0      19.5
          40.0       1.2
          44.0       3.2
          49.0       1.0
          50.0      10.6
          51.0      29.3
          52.0       1.4
          60.0       4.6
          61.0       1.2
          62.0       2.5
          63.0       6.4
          64.0       2.4
          65.0      19.9
          66.0       3.0
          68.5       1.1
          69.0       1.6
          74.0       3.0
          75.0       2.2
          76.0       3.2
          77.0      96.5
          78.0       6.9
          79.0      79.7
          80.0       1.6
          81.0      29.6
          83.0       1.3
          93.0       1.1
          94.0       8.9
          95.0       1.0
         108.0       2.4
         109.0      68.6
         110.0       5.6
         111.0       3.5
         112.0       4.3
         114.0       1.4
         137.0     100.0
         138.0       8.5
         139.0       5.2
         144.0       5.7
         146.0       2.2
         172.0      24.3
         173.0       2.2
         174.0       8.9


400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C7 H5 Cl O S 0.05 ml : 0.5 ml CDCl3
    o-phenyl chloro(thioformate)

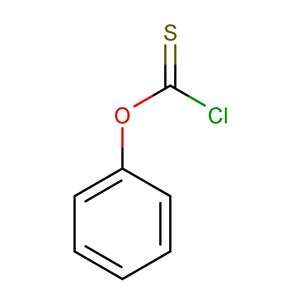

    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.406 B 7.293 C 7.101

         Hz     ppm     Int.


       2970.46   7.433     87
       2968.63   7.429    321
       2967.90   7.427    382
       2966.06   7.422    215
       2963.26   7.415    122
       2961.91   7.412    253
       2960.69   7.409    717
       2960.08   7.407    695
       2959.23   7.405    611
       2957.52   7.401    173
       2954.22   7.393    305
       2952.39   7.388    692
       2949.83   7.382    143
       2922.36   7.313    224
       2921.26   7.310    449
       2920.04   7.307    268
       2917.24   7.300     33
       2915.53   7.296    197
       2913.70   7.291    509
       2911.99   7.287    193
       2909.91   7.282     30
       2907.47   7.276    144
       2906.37   7.273    264
       2905.27   7.270    147
       2845.21   7.120    199
       2843.51   7.116    759
       2842.41   7.113   1000
       2840.21   7.107    299
       2836.79   7.099    281
       2835.94   7.097    445
       2834.84   7.094    803
       2833.74   7.091    838
       2831.05   7.084    118


in CDCl3



liquid film
